Analysis
Casablanca, SADDN, Alkimos, Aqaba-Amman and Hassyan carry confirmed intake, outfall, tunnel, offshore-structure or commissioning scope. Taweelah C remains a watch until owner, EPC or environmental records define the physical coastal utility package.
Power, desalination, mining-water, and bulk-conveyance announcements are usually organised around output: megawatts, litres per second, cubic metres per year, financing, or commercial-operation dates. The marine scope may sit several layers lower in an environmental assessment, EPC description, lender disclosure, construction update, or commissioning sequence. That is where intake towers, tunnels, shoreline shafts, cofferdams, trenching, outfall pipelines, diffusers, temporary jetties, dredging, diving, and marine monitoring become visible.
A coastal location is not enough. Marine scope is credible only with a project-specific physical interface, an attributable source, a delivery position, and a next event that can confirm or disprove the current reading. That threshold prevents two opposite errors: missing real marine work because the headline calls the scheme a power or water project, and inventing a marine package because a plant happens to be beside the sea.
Project screening method
The six checks trace the water path, construction method, acceptance interface, contract position and evidence needed to classify the marine work.
Project-level evidence comes from the owner, authority, lender, regulator, concessionaire or named EPC party, with scope terms covering seawater, cooling water, intake, outfall, tunnel, diffuser, marine pipeline, cofferdam, dredging, offshore structures and discharge controls.
Source trail supports the coastal scope at project level.Follow water from the sea to abstraction, treatment or cooling, storage and conveyance, then back through brine, thermal discharge, or treated-water return. Include power and pumping systems that make the marine assets operable.
Abstraction-to-return system is bounded as one operating route.The coastal route may require tunnels, shafts, trenching, drilling and blasting, floated pipe strings, piling, offshore lifts, risers, diffusers, revetment, temporary jetties, dredging, diving or seabed protection.
Marine workfronts, specialist plant and access constraints are visible.Connect the offshore and shoreline assets to plant, electrical, pipeline, control, environmental, and operating systems. Ask which interface can delay integrated testing or first reliable output.
Controlling handovers connect marine assets to reliable output.Project status distinguishes financing, concession, EPC award, subcontract formation, construction, commissioning and operations, together with committed packages and unresolved supplier or service demand.
Committed packages remain separate from open supplier demand.Confirmed denotes explicit project-level scope, Reported denotes attributable but incomplete evidence and Watching denotes a connection that remains a hypothesis; classification changes only with a dated source or milestone.
Confidence remains tied to a dated source or event.Six-project evidence map
Five projects disclose a physical marine system in project-level sources; Taweelah C has no identified coastal utility package in the reviewed record.
Casablanca concentrates risk in shared marine and tunnelling systems that must serve both desalination phases. SADDN connects an offshore intake tower and submarine corridor to 160 kilometres of high-head conveyance and a mine reservoir, so first water at the reservoir is a commissioning milestone rather than proof of full commercial operation. Alkimos requires bored tunnels from shore to meet offshore risers, structures, and a diffuser within survey and mechanical tolerances before integrated testing can start.
Aqaba-Amman is earlier in the cycle: the marine design is disclosed, but financial close and notice to proceed still control mobilisation. Hassyan is later: one block is commissioned, while intake-outfall acceptance, environmental performance and the remaining capacity are the next unresolved acceptance points. The physical vocabulary overlaps across these projects, but the open decision is different in each one.
Taweelah C is an awarded 2.6 GW combined-cycle project at the Al Taweelah Power and Desalination Complex, with commercial operation forecast for 2029. The reviewed owner, partner, and equipment announcements establish the IPP award, ownership structure, power-purchase arrangement, technology, and schedule. Those announcements do not define a project-specific cooling-water intake, outfall, brine, seawater pipeline, or marine civil package.
Taweelah C is not a confirmed marine-work case. Public EPC, environmental, procurement, design and construction records do not identify a physical coastal system, so the marine interface remains unconfirmed.
At financing stage, the high-value questions concern bankable design, environmental conditions, package strategy, final quantities, baseline surveys, and notice to proceed. During construction, attention shifts to access, marine plant, temporary works, geotechnical and seabed conditions, tunnel or trench production, environmental windows, survey control, lifting, and interface handover. During commissioning, the market moves again toward inspection, corrosion and integrity management, water quality, diffuser performance, pumping reliability, spares, operator readiness, and sustained output.
The same intake or outfall description therefore does not imply the same opportunity. The contract may already be embedded in a concession or EPC package; the remaining value may sit with specialist subcontractors, monitoring providers, commissioning teams, or long-term operators. A credible market read states what is committed, what remains open, and which acceptance event changes the supplier map.
A visible offshore structure, completed tunnel drive, delivered pipe string, or first flow can be important without closing the whole marine system. Intake and outfall assets still have to connect to plant, power, conveyance, monitoring, and operating controls; the relevant owner or authority must then accept performance against the applicable requirements.
Each project has a different event that would justify a status change: financial close, final design acceptance, mobilisation, diffuser installation, tunnel breakthrough, permanent connection, rated-flow testing, environmental compliance, owner acceptance or commercial operation. Until that event occurs, no broader evidence classification is supported.
Subject index
These subject pages bring together related projects, technical articles, reports, and evidence methods.

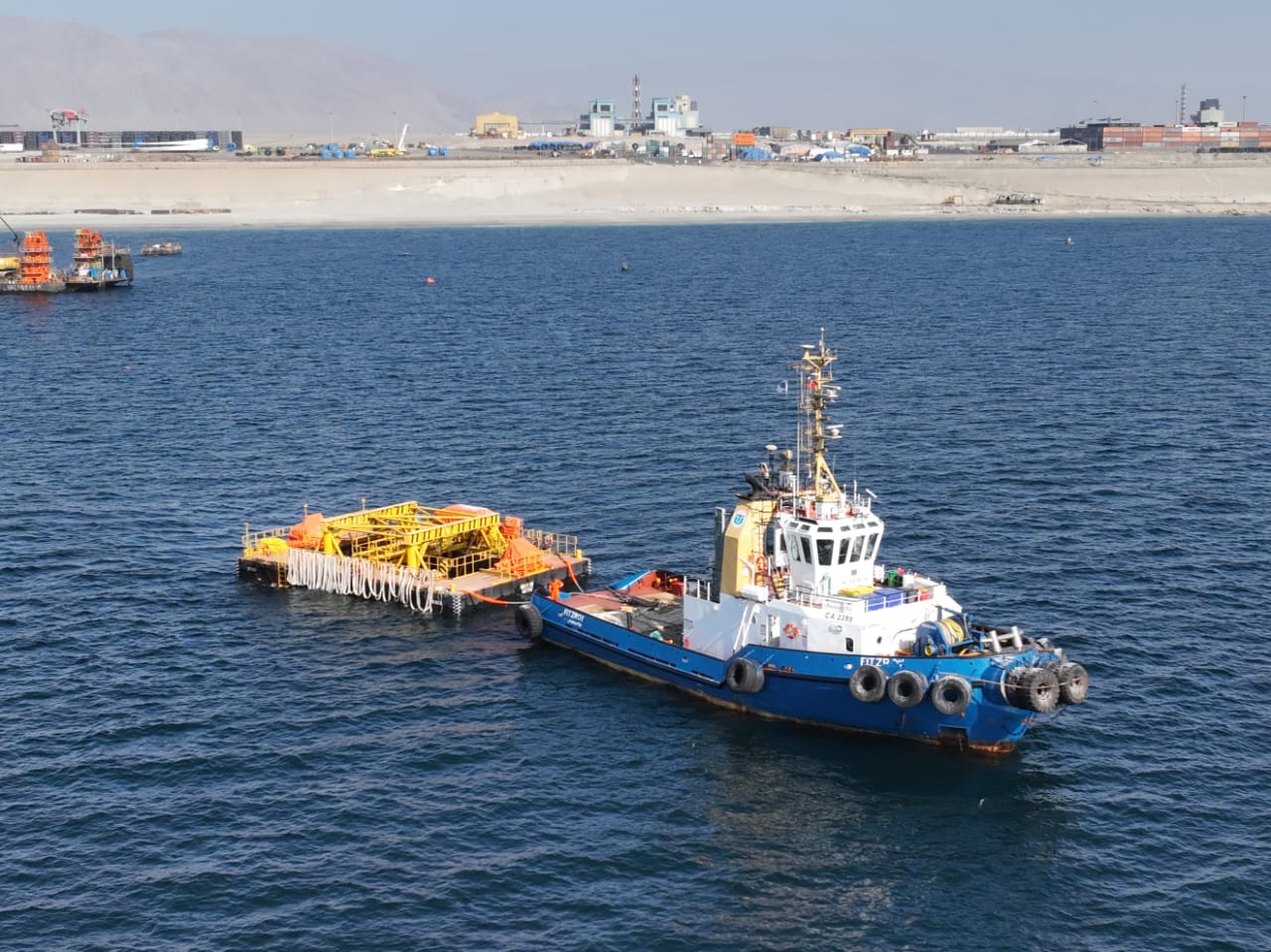

Used for the lead image and project-specific evidence that the pictured structure is SADDN seawater intake Tower No. 1 being transferred offshore.
