A signed contract, marine plant on site, dredged volume, a completed quay and commercial vessel access mark different points in a port programme. Six current cases trace the remaining work between a package award and capacity an operator can actually use.
Marine project announcements often use one visible event to stand in for the whole delivery chain. A contract is called a project start, equipment arrival becomes mobilisation, dredging becomes deeper access, and a finished quay becomes terminal capacity. Each event can be genuine while the operating conclusion remains premature.
Usable capacity appears only when each milestone is read at its own level. A signed package creates commercial authority to perform a defined scope. Plant mobilisation opens a workfront. Production and survey records can release a dredged area. Quay, fairway, navigation-system, environmental, terminal and harbourmaster acceptance cover different parts of the operating system. Only their controlled integration can support a usable-capacity claim.
Acceptance method
Usable capacity appears only when the awarded scope, as-built geometry, material route, accepted marine asset and operating release align.
Separate the overall programme, each employer, each contract package, port-side and fairway responsibility, terminal work, and any later operating or concession agreement before interpreting an award.
Awarded scope is separated from the rest of the programme.Record the design surface, horizontal limits, chart datum, baseline bathymetry, tolerances, overdepth rules, berth pockets, turning areas, and the authority that accepts the final survey.
Completion is measured against accepted geometry.Track material classes, in-situ and paid quantities, treatment, rehandling, reclamation, beneficial use, offshore or confined placement, environmental monitoring, and destination acceptance without merging unlike volumes.
Cut volume reconciles with treatment and accepted destination.Require completion records for dredged reaches, quay and berth structures, containment, reclamation formation, foundations, fenders, bollards, scour protection, utilities, and defects before calling the physical package complete.
Physical package is accepted before capacity is claimed.Connect accepted civil works to navigation aids, charts, under-keel-clearance policy, pilotage, towage, VTS, terminal equipment, power, systems, emergency response, permits, and trained operating teams.
Civil, nautical and terminal systems serve the same vessel envelope.Look for the responsible authority's navigation or berth release, successful trial calls, owner acceptance, first commercial service, repeat operation, and performance against the capacity claim over time.
Responsible authority releases constructed capacity into use.Six-project acceptance map
The six programmes separate award, mobilisation, physical acceptance and operating release in different ways.
Sabine-Neches makes the boundary visible. The April 2026 Callan package is a USD 239 million step toward a 44-foot usable draft, while the authorised programme extends to a 48-foot inland channel and 50-foot offshore reach. Later contracts remain in the full-depth sequence. Treating the Callan award as the complete deepening would erase both the remaining physical scope and the public-federal delivery split.
Rotterdam separates capacity by phase even more explicitly. The completed Phase A tug quay supports two-way traffic for vessels up to 18,000 TEU; Phase B adds inland-shipping quay capacity and targets two-way traffic for the current fleet up to 24,000 TEU; Phase C, after 2028, carries the widening and deepening needed for the stated future-vessel objective. One programme name therefore contains three different civil and nautical releases.
A dredged quantity has limited decision value unless the record also identifies the design surface, survey datum, tolerances, material classes, authorised placement routes, environmental windows, rehandling, and acceptance method. Tunisia's three-port contract demonstrates the material problem: Sousse and Menzel-Bourguiba use reclamation, Bizerte combines reclamation and offshore disposal, and Rades-La Goulette sends material ashore. The containment works and the separate monitoring and technical-assistance assignment are part of the delivery system, not background detail.
Ndayane combines a five-kilometre access channel, about 10 million cubic metres of dredging, hard material, Atlantic exposure, and reuse for an 89-hectare reclamation platform. Those published quantities establish a substantial marine package. They do not by themselves establish final channel geometry, accepted reclamation formation, quay readiness, terminal commissioning, or an open commercial service.
Skandia Gateway has an active quay-reinforcement package, an awarded port-side blasting and dredging package, and a separately controlled national-fairway programme. The port-side contract cannot release the nearly five-kilometre fairway, and the fairway cannot create usable deeper access if the quay, turning area, navigation aids, terminal controls, and operating procedures are not ready for the same vessel envelope.
This interface is where schedule headlines become operational questions. The controlling records should reconcile horizontal geometry, chart datum, berth-pocket depth, under-keel-clearance rules, turning and passing conditions, quay structural capacity, fenders and bollards, navigation aids, pilotage, towage, traffic restrictions, and the authority that issues the final navigation or berth release.
Contrecoeur now has a 300-tonne crawler crane assembled for pile and sheet-pile installation and sheet piles delivered to storage on 13-15 July 2026. The owner's current sequence places wharf construction from August 2026, dredging from fall 2027, and completion and opening in 2030. The equipment and deliveries are real readiness evidence, but they are not proof of installed piles, completed quay wall, dredger mobilisation, accepted depth, or terminal opening.
For suppliers, assembled equipment signals that a workfront is forming; for lenders, operators and cargo owners, it does not show handover. Keeping those two readings separate also prevents later updates from having to reverse an inflated completion claim.
Near-term scope and cash flow depend on the unresolved event: a survey baseline, containment completion, seasonal work window, national-fairway award, quay handover, navigation-aid commissioning, harbourmaster notice, or first repeat commercial service.
Without that event, the status can identify only the scope already released and the evidence still missing. This is more precise than a generic progress percentage and makes unlike projects comparable without flattening their contract and acceptance structures.
Knowledge context
Continue through the topic collections to compare this record with related projects, evidence guides, briefs, articles, reports, and performance records.
Used for the Callan package value, 44-foot usable-draft boundary, quantity, anchorage scope, and delivery window.
Used for the overall 40-to-48-foot programme boundary, public-private cost share, and project context.
Used for the completed Phase A, active Phase B, post-2028 Phase C, and the distinct traffic and draught outcomes attached to each phase.
Used for the joint owner structure, quay start, Q3 2027 fairway sequence, target geometry, and 2029 programme schedule.
Used to keep the awarded port-side Boskalis package separate from the later national fairway works.
Used for sheet-pile deliveries, site-preparation activities, the August 2026 wharf start, fall 2027 dredging sequence, and 2030 opening target.

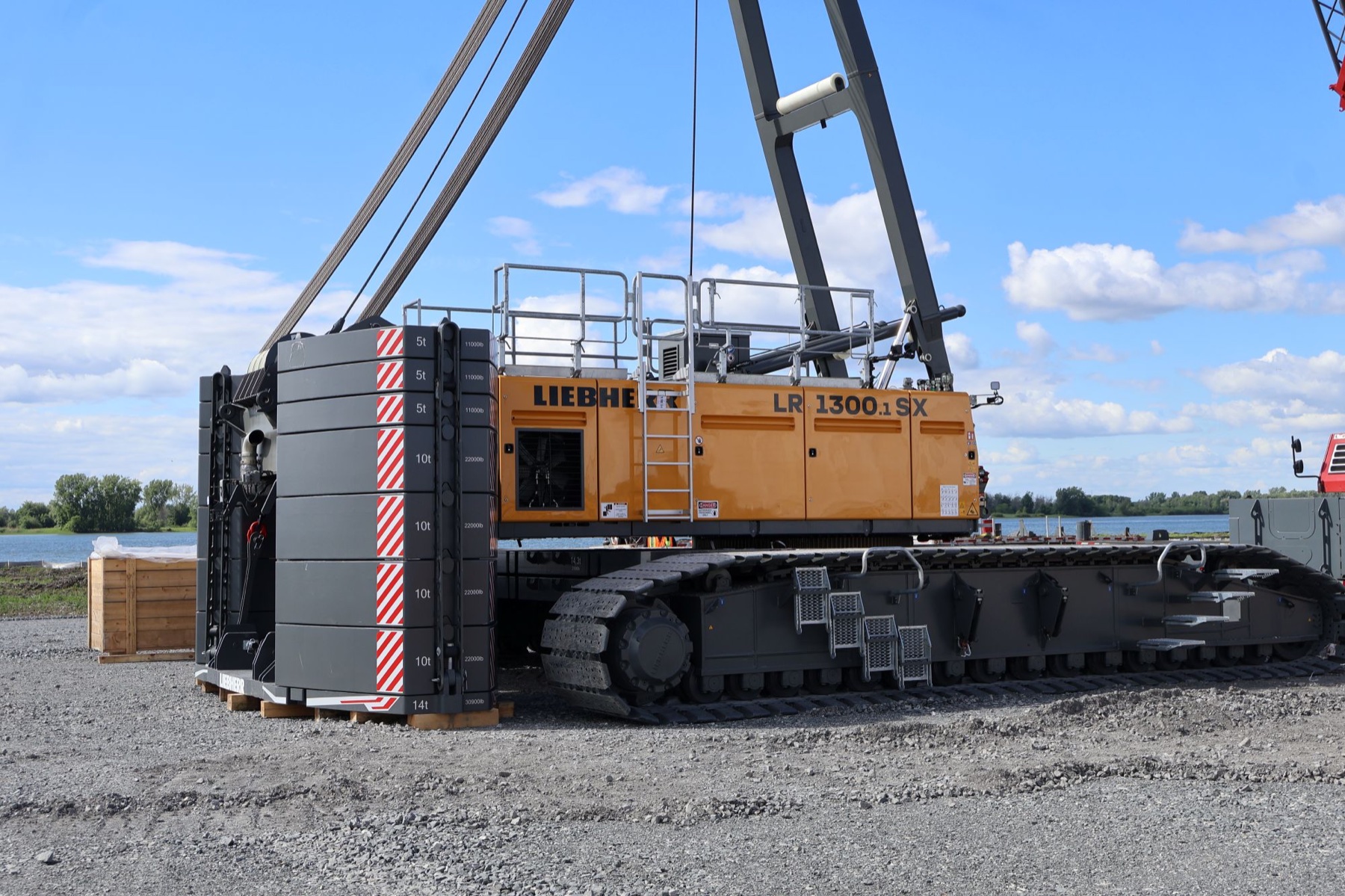

Used for the lead image and project-specific evidence that the assembled crawler crane is intended for pile and sheet-pile installation at Contrecoeur.
Used for the channel length, dredging volume, mixed-ground conditions, reclamation area, material reuse, and delivery window.
Used for the first-phase quay, channel, terminal-capacity, and maritime-construction boundary.
Used for the three-port contract, containment-first sequence, TSHD work, value boundary, and distinct material routes.
Used for the separate guidance, monitoring, and technical-assistance control package covering the same three port areas.
